Dixon sanitary valves
Build your butterfly or check valve and get the part number
Butterfly valves in premium B5107 316L or economy L5107 304, manual or air actuated. Spring check valves for vertical or horizontal lines. Pick your options and you get the Dixon part number, specs, and a flow check.
These are the most common valves, not our full line. Our manufacturers make many more sizes, materials, and configurations. Don't see what you need? Call (956) 386-1464, email sales@lagindustrial.com, or download the full catalogs.

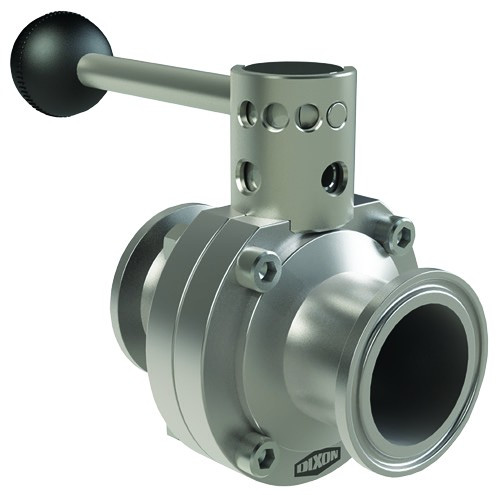

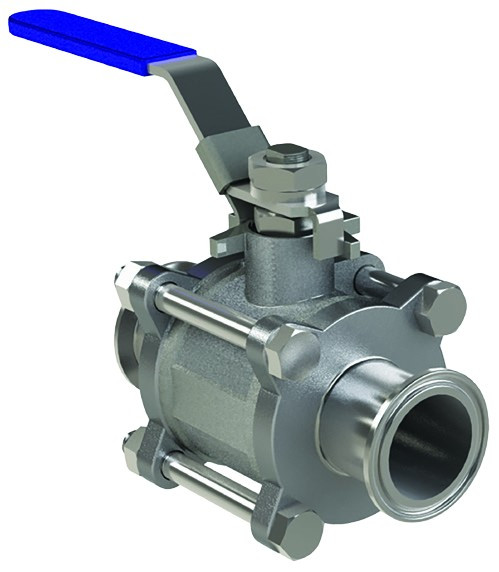

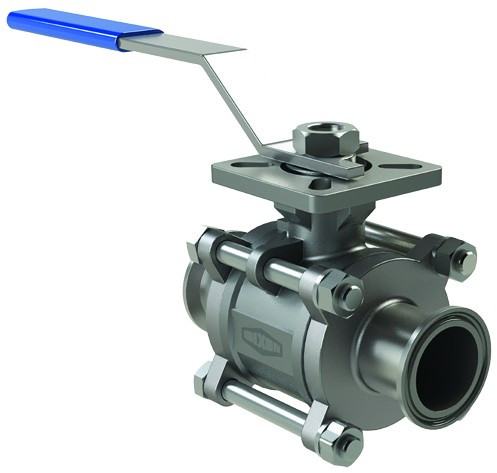

Sanitary ball valve builder · BV2, BV3S, BV4S
On/off or diverting, five seat materials
CF8M stainless with full port bores that match the tube ID. Choose a 2-way 3-piece valve for on/off, or a 3-way or 4-way multi-port valve to divert flow.

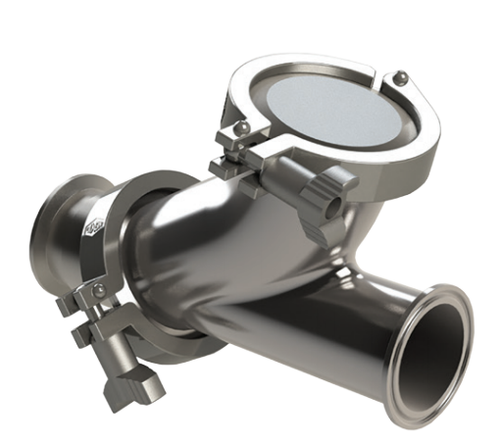

HYC Y-ball check valve builder
Backflow protection that passes solids
The ball lifts into the branch when product flows and drops back onto the seat when it stops. Mounts vertical or horizontal, and passes particles up to 1.5" in the 3" size.

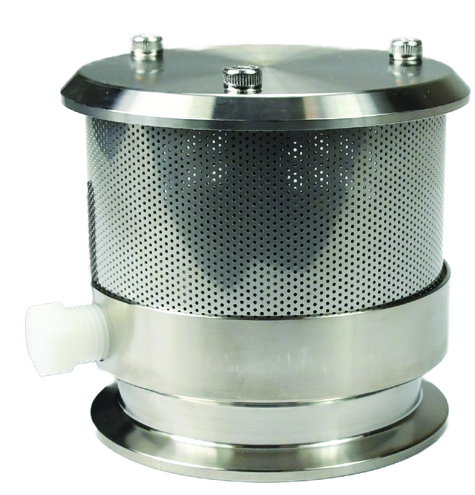

TVSEC tank vent
Protect tanks while filling and emptying
Relieves pressure as the tank fills, relieves vacuum as it empties, and seals when pressure is equal. A stainless screen keeps debris out, and a ¼" FNPT port lets you blanket the tank with inert gas.
Most common in wineries and breweries. Designed for indoor use, 40°F to 120°F.

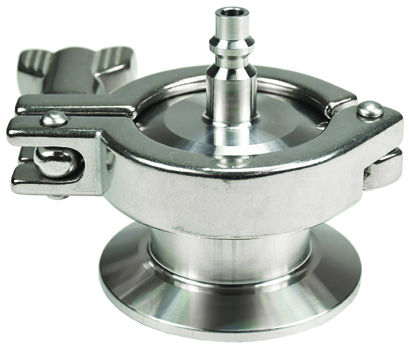

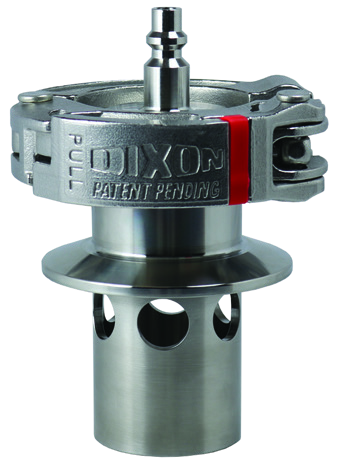

B45 air blow check valve builder
Blow lines clear or inject clean air
Clamps onto a ferrule to push product out of a line or add clean air or gas. 316L with EPDM, 3-A, cracks open at 9 PSI. Pairs with the HYC Y-ball check valve.

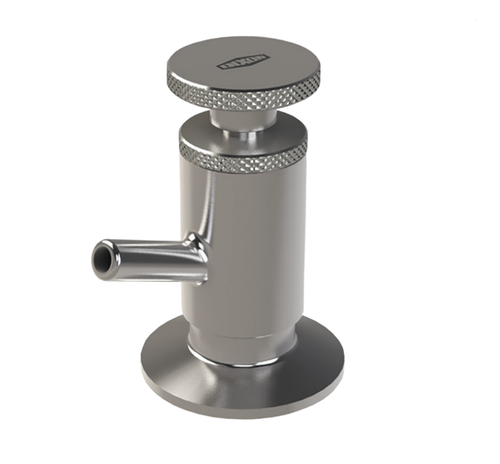

BSVW sample valve builder
Pull a clean sample from any tank or line
304 stainless, 32 Ra product contact, and a knob that opens and closes by hand. Clamp, weld, or male NPT to the process.

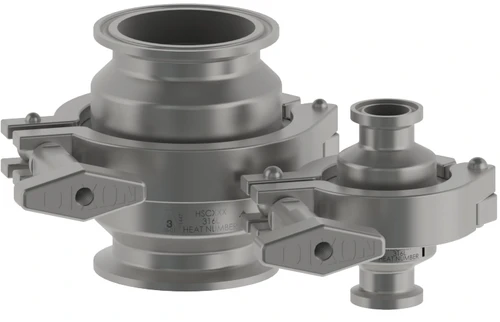

HSC / EHSC spring check valve builder
Stop backflow, vertical or horizontal
Machined from solid 316L bar with an integrated spider. 3-A, CIP from 1" to 4". Size a check valve for your flow, not just your tube size.

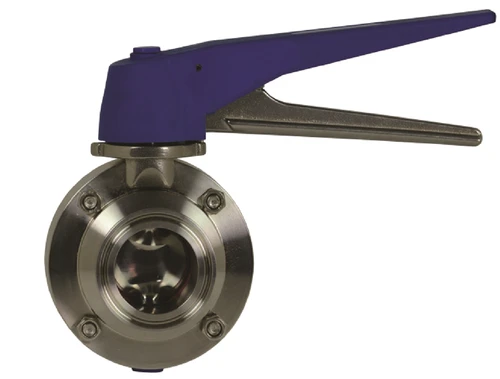

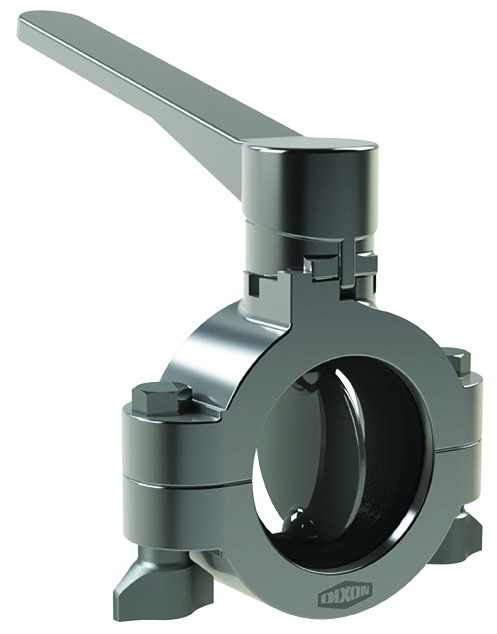

Butterfly valve builder
Five choices, one part number
Options that a series or size doesn't offer are greyed out, so every part number you see is one Dixon builds.
Your quote list
Valves and fittings, one quote
This list is shared with the fittings page, so you can add valves, ferrules, clamps, and gaskets and send them together.
| Part # | Description | Qty |
|---|
Your list is empty. Build a valve above and press "Add to quote list".
Need seat valves, mix-proof valves, or a valve cluster?
Single-seat, double-seal, and mix-proof valves, position sensors, solenoids, control tops, electric actuators, and valve manifolds are engineered and quoted by our team. See engineered valves, or tell us the application and we'll call you.
