Engineered solutions

Built to your drawing. Sized to your process.

When a catalog part won't do, send us a sketch, a drawing, or the problem. We handle custom stainless fabrication, valve automation, mix-proof valves, and CIP projects, and we quote with a drawing for your approval.

Start a project See custom fabrication

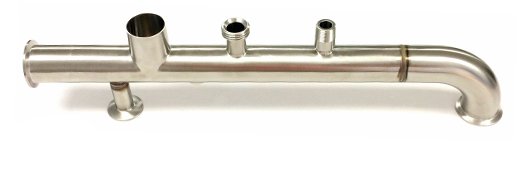

Custom stainless manifold with clamp ports and a 90° elbow

Custom fabrication

No order is too small

Experienced machinists, welders, and polishers build sanitary stainless parts to your specification or to the drawing you send.

Send your requirementsA sketch, a drawing, a photo, or just the dimensions and connections you need.
Get a CAD drawing and a quoteWe return a CAD drawing for your approval with the quotation, fast.
Approve the printFabrication starts once the quote and the drawing are approved.
Built and shippedYour part ships direct from the fabrication shop to your plant.

Materials

304 and 316L stainless. Other alloys on request.

Finishes

Polished, unpolished, or electropolished.

Connections

Clamp, weld, bevel seat, I-Line, SMS, DIN, threaded.

What we build

ManifoldsSpool piecesDip tubesJumpers and U-bendsTank and vessel fittingsSpecial ferrules and adaptersReducing assembliesInstrument tees

From drawing to part

Two examples. Every job gets a drawing like these for your sign-off before we cut tube.

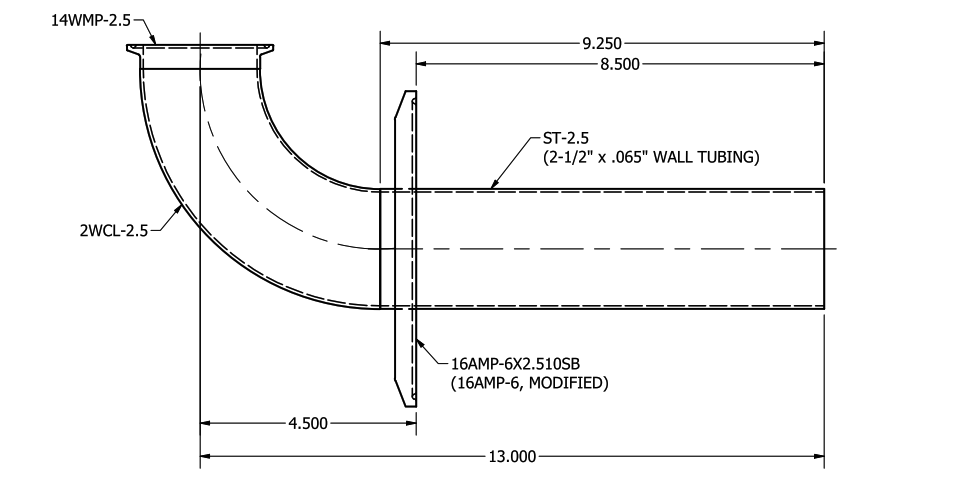

Drawing of a 2-1/2 inch clamp by weld dip tube assembly with a 6 inch clamp cap — **2½" TC × BW × 6" TC dip tube assembly**8½" insertion, 316, #7 polish

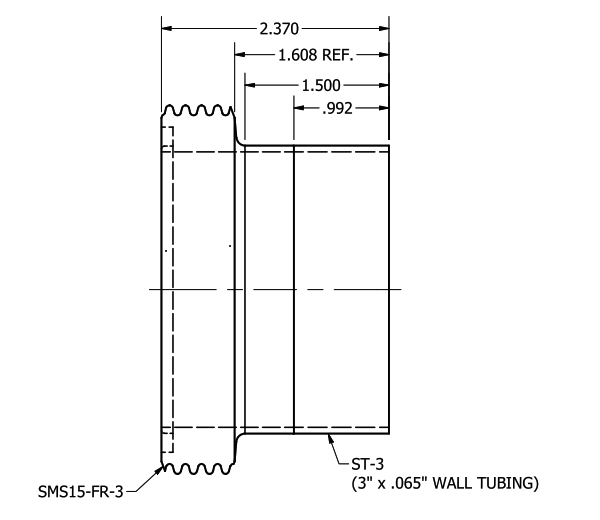

Drawing of a 3 inch SMS threaded ferrule with an extended tangent — **3" SMS threaded ferrule with extended tangent**3" × .065" wall, 316, #7 polish

Automation

Valves that open and close themselves

We automate sanitary butterfly and ball valves with air or electric actuators, and build valve clusters ready to wire into your controls.

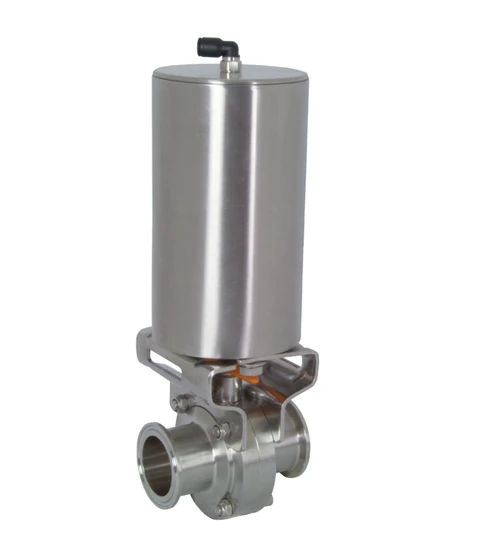

Sanitary butterfly valve with a stainless air actuator — Butterfly valve, air actuated

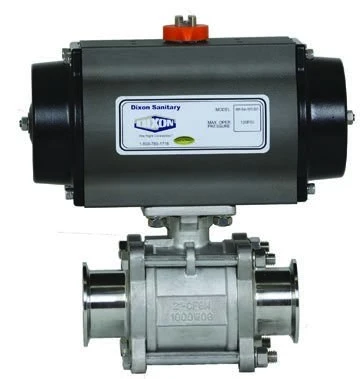

Three-piece clamp-end ball valve with a pneumatic actuator — Ball valve, pneumatic actuator

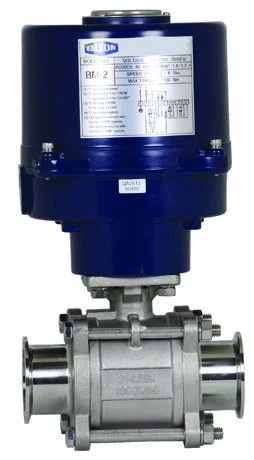

Three-piece clamp-end ball valve with an electric actuator — Ball valve, electric actuator

Every automated valve is configured for your process

Fail position, air or electric, voltage, feedback, solenoids, and control tops all depend on how your line runs. Tell us what you need and we'll configure it and quote it.

Air actuators: spring return or double acting
Electric actuators
Control tops, position feedback, and solenoid valves
Automated valve clusters and divert stations

Call us to configure

Send the valve type, size, connections, air or electric, fail position, and your control voltage, or just describe the application. We'll call you back.

(956) 386-1464

sales@lagindustrial.com

Send your requirements

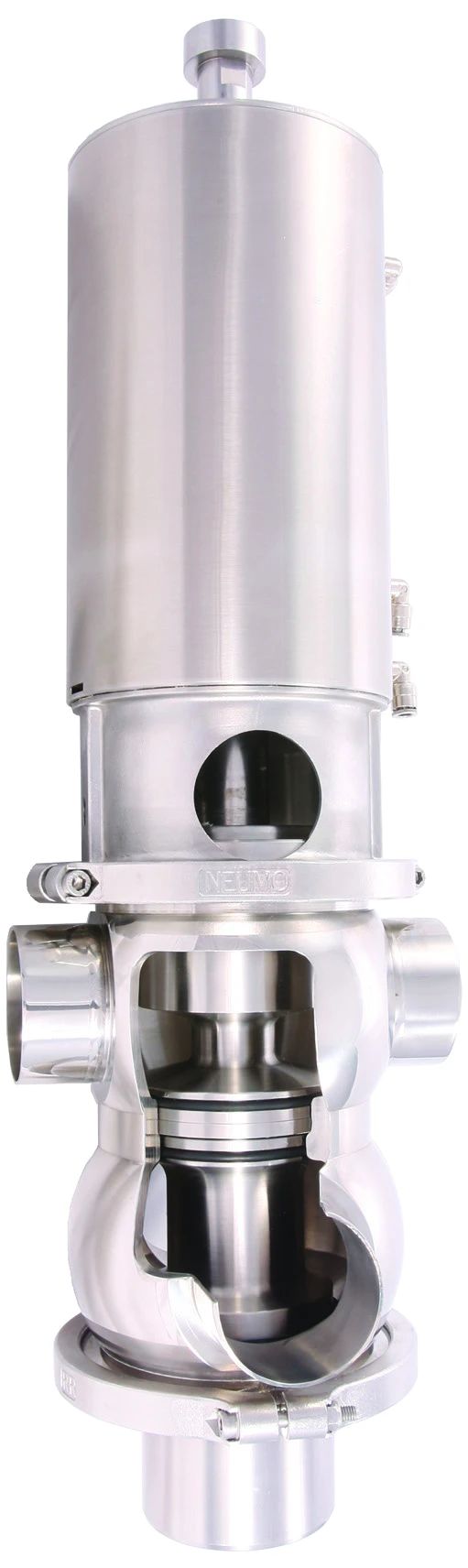

Cutaway of a double-seat mix-proof valve — Double-seat mix-proof valve

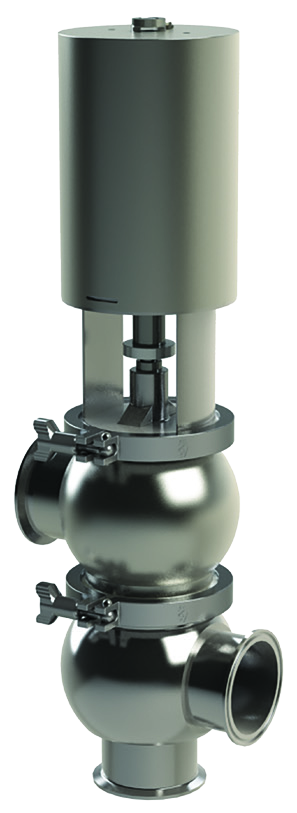

Single-seat divert valve with clamp ends — Single-seat divert valve

Seat & mix-proof valves

Two products, one valve, zero cross-contamination

Seat valves and mix-proof valves are the heart of automated process lines. Each one is sized and configured for your plant, with the actuator, control top, and connections your process needs, so we quote them as an engineered project.

Single-seat valvesShut-off and divert (changeover) valves

Double-seal valvesTwo seals with a leakage chamber for added safety

Double-seat mix-proof valvesProduct and CIP in the same valve at the same time

Tank outlet valvesFlush with the tank bottom, no dead leg

Sampling valvesAseptic and standard sampling points

Valve matrices and clustersPre-built, tested, and ready to install

Talk to an engineer

Tell us the product, flow rate, temperature, line size, and how the cluster runs. We'll size the valves and send a proposal.

(956) 386-1464

sales@lagindustrial.com

Describe your project

CIP projects

Clean in place, done right

From one spray device for a new tank to a full CIP supply and return loop, we help you pick the coverage, flow, and connections that clean your equipment.

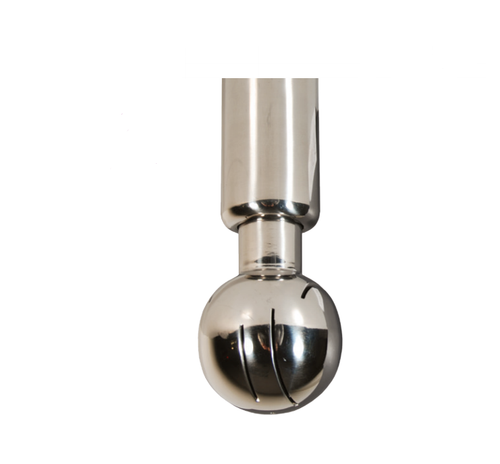

Static and rotating spray devices sized for your tank
CIP supply and return piping, spools, and manifolds
Valves, pumps, and fittings for the CIP circuit

Catalog spray balls and washdown equipment are in Maintenance & Washdown.

Start a project

Tell us what you need

We reply the same business day. Have a drawing? Email it to sales@lagindustrial.com with your company name in the subject.
