Sanitary pumps · Dixon and Q-Pumps

The right pump for your product

Centrifugal pumps for thin liquids and CIP, positive displacement pumps for thick and shear-sensitive products, and in-line mixers. Every pump is sized to your flow, head, viscosity, and temperature before we quote it.

Size a pump in 1 minute Talk to us

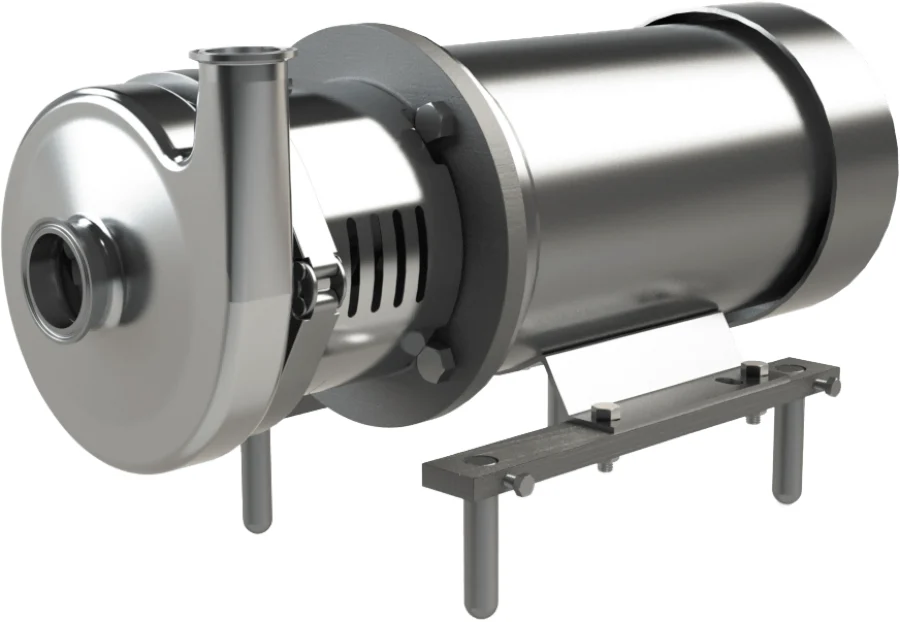

Sanitary centrifugal pump with stainless motor shroud and legs

These are some of the most common pumps, not our full line. Both manufacturers offer more sizes, seals, motors, and options. Don't see what you need? Call (956) 386-1464, email sales@lagindustrial.com, or download the full catalogs.

Centrifugal pumps

For thin liquids, transfer, and CIP

Best for water-like products such as milk, juice, beer, and cleaning solutions, at high flow and moderate pressure.

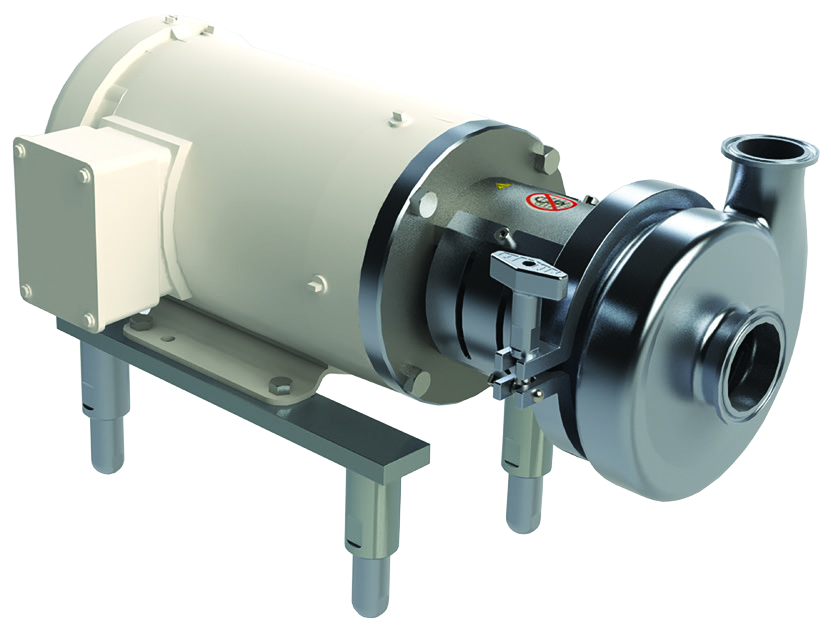

Dixon BC/BP series sanitary centrifugal pump
Dixon

BC / BP Series

The workhorse sanitary centrifugal, 3-A authorized.

Inlet / outlet
1½"–6" / 1½"–4"
Flow
Up to 1,200 GPM
Speed
Up to 3,450 RPM
Temperature
32–212°F
  • 316L product contact, 32 Ra finish
  • Externally balanced D and DG seals, F flush seal
  • C-face TEFC or washdown motors, legs, base plate, or cart

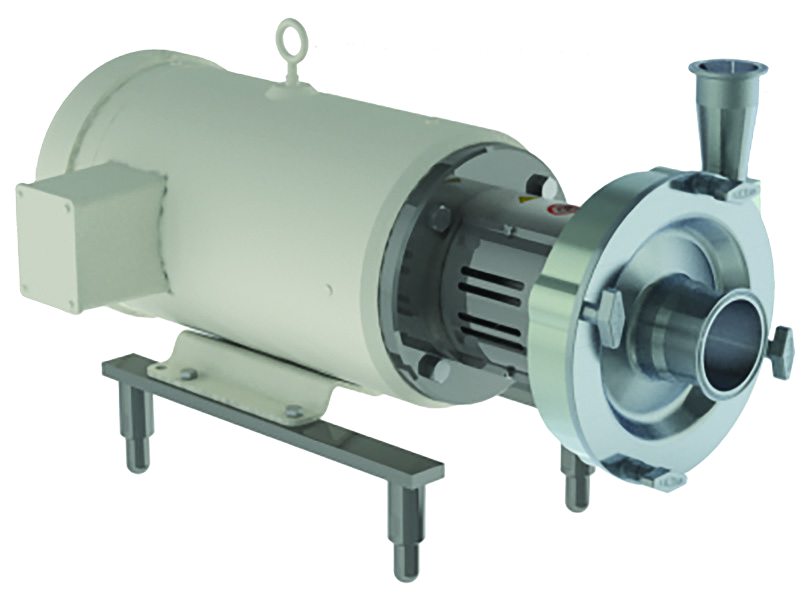

Dixon ExD series sanitary centrifugal pump
Dixon

ExD Series

Casing and cover machined from solid bar, fully traceable.

Inlet / outlet
1"–4" / 1"–2½"
Flow
Up to 500 GPM
Max head
225 ft
Temperature
32–212°F
  • Outlet rotates 90° to 180° without disassembly
  • Leak chamber shows seal wear from outside
  • Seal parts interchange with BC series
Q-Pumps QC+ series centrifugal pump
Q-Pumps

QC / QC+ / IC+ Series

Easy to assemble, with many upgrade options. 3-A certified.

Motors
NEMA or IEC
Power
50 or 60 Hz
Impeller
Open
Contact parts
316L
  • Clamp, flange, bevel seat, and DIN connections
  • QC+: impeller held with a wedge and nut
  • For food, beverage, and agriculture

Positive displacement pumps

For thick, delicate, or high-pressure products

Constant flow regardless of pressure. Use them for yogurt, sauces, syrups, creams, fruit with pieces, and anything a centrifugal can't move.

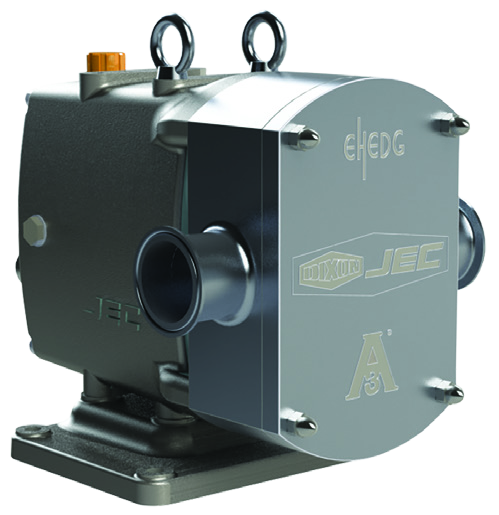

Dixon JEC rotary lobe pump
Dixon

JEC RZL Rotary Lobe

Compact, 100% CIPable lobe pump with a stainless gear box. 3-A and EHEDG.

Displacement
0.53–88 gal/100 rev
Pressure
Up to 300 PSI
Ports
1"–5"
Speed
Up to 1,000 RPM
  • Front-loading single or double mechanical seals (TC/TC), O-ring or lip seals, flush on all
  • Bi-wing, single-wing, bi-lobe, tri-lobe, multi-lobe, heli-lobe, or spur gear rotors
  • Options: heating jacket, rectangular inlet, relief valve, high pressure to 435 PSI

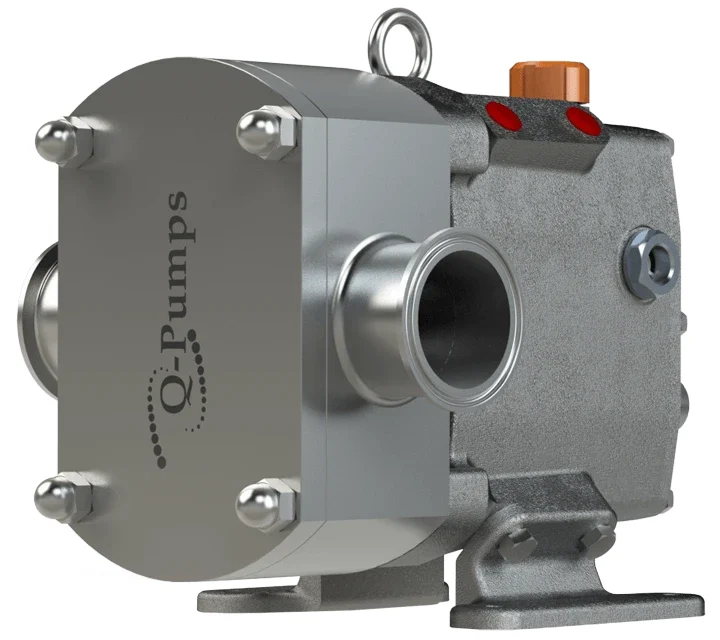

Q-Pumps QL series rotary lobe pump
Q-Pumps

QL Series Rotary Lobe

Versatile and affordable, tailored to each application. 3-A and EHEDG.

Rotors
Bi-wing, single-wing, tri-lobe, multi-lobe
Seals
4 types, tungsten carbide standard
  • Front access for quick, easy cleaning
  • Clamp, SMS, bevel seat, DIN, and flange connections
  • Cast iron or stainless bearing box

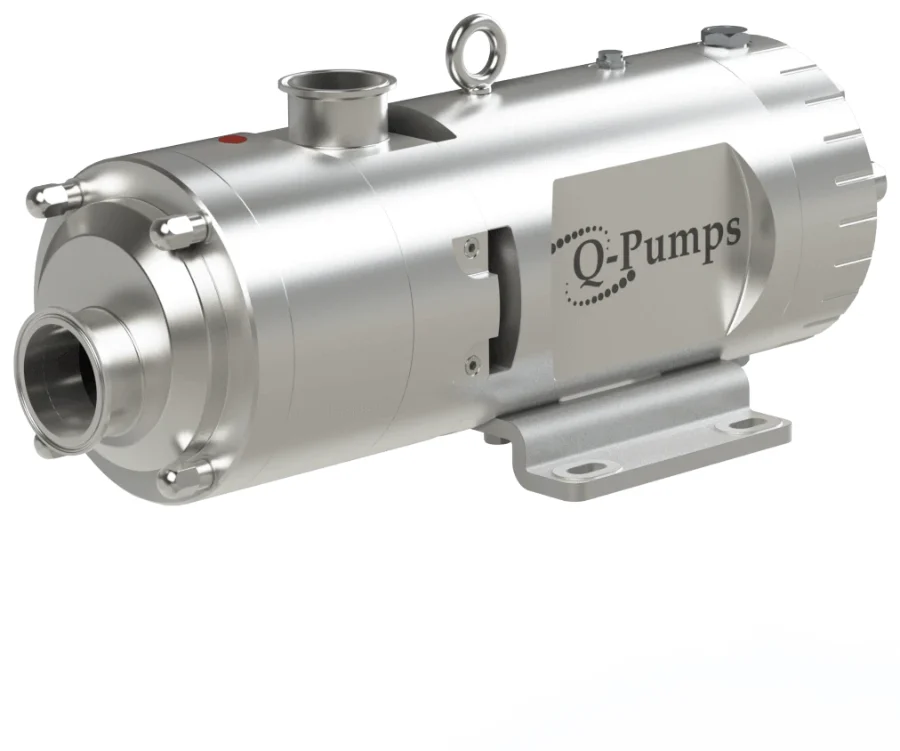

Q-Pumps QTS series twin screw pump
Q-Pumps

QTS Series Twin Screw

One pump for product and CIP: pulsation-free, self-priming, bidirectional.

Speed
Up to 3,000 RPM
Entrained air
Up to 60%
  • High-speed CIP through the same pump
  • Handles abrasive and cut-sensitive products
  • Reversible to recover product from the line
  • 100% stainless, 316L wetted parts, fully drainable
Dixon JEC positive displacement pump
Dixon

JEC RZP Circumferential Piston

Long sealing path and close clearances for low slip at higher pressure.

Displacement
1.38–31.2 gal/100 rev
Pressure
Up to 246 PSI
Ports
1½"–3"
Speed
Up to 800 RPM
  • 316L rotors and wetted parts, 25 Ra, 3-A and EHEDG
  • Same seal options as the RZL, flush available on all
  • For thick products at higher pressure

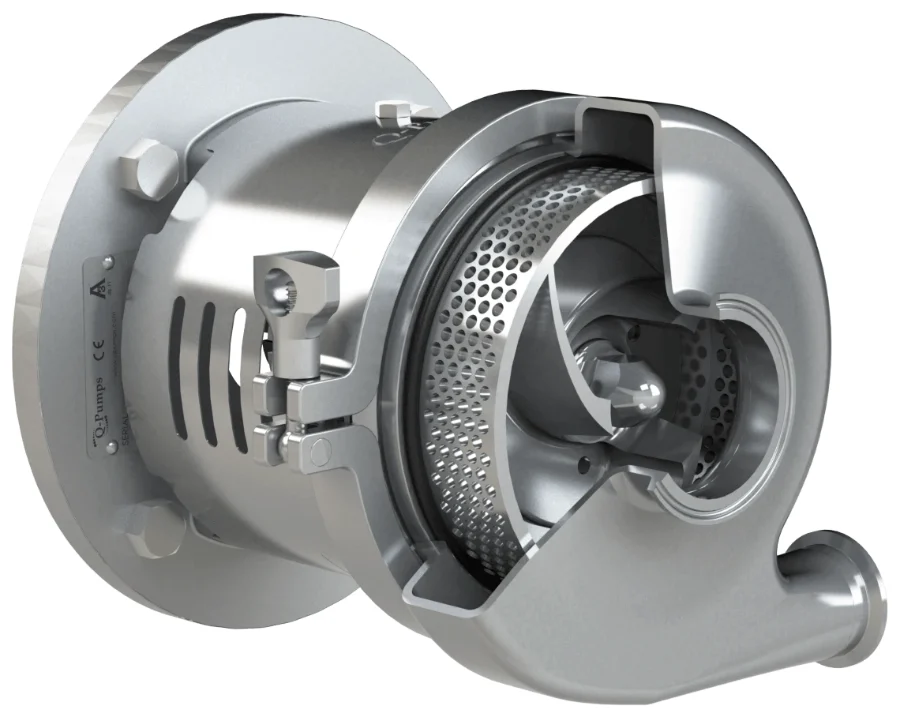

Cutaway of a Q-Pumps QIM in-line mixer

In-line mixers

Q-Pumps QIM Series

Homogenize, disperse, or break down product while you pump it. A radial-flow centrifugal design built to 3-A and EHEDG standards.

  • Five backplate options to match each application
  • Semi-open impeller, 316L with 32 Ra max on all wetted surfaces
  • Fully drainable with the discharge horizontal
  • A QC+ pump can be converted into a QIM, and a QIM into a QDB dry blender

Pump Configurator

Size a sanitary pump in a minute

Enter your product and duty point. You get the right pump type, a motor size, and the line size. Then send it to us for a quote on the exact Q-Pumps or Dixon model.

GPM
PSI
cP
°F

Recommended

Centrifugal pump

Total head
—
Speed
—
Drive
—
Brake power
—
Motor
—
Line size
—
Line velocity
—
Shaft seal
—
Elastomers
—
Surface finish
—
Motor enclosure
Stainless washdown TEFC

    Preliminary sizing for budgeting. Before you order, a LAG engineer confirms the exact Q-Pumps or Dixon model, impeller or lobe size, speed, and motor against the factory curves for your system.

    Size your pump

    Every pump is selected for your process

    Flow, head, viscosity, temperature, solids, and seal choice all change which pump and motor you need. Use the configurator for a fast first pick, or send us your process data and we'll size it for you.

    Open the pump configurator

    Call us to size it

    Tell us the product, flow (GPM), pressure or head, viscosity, temperature, and connections. Have a pump to replace? Send the model or a photo of the nameplate.

    (956) 386-1464

    sales@lagindustrial.com

    Request a pump quote

    Request a pump quote

    Send us your duty. We answer today.

    Used the configurator? Press "Quote this pump" and your sizing fills in below. Replacing a pump? Add the model or a photo of the nameplate to your email.

    Prefer to talk?

    Monday to Friday, 8 AM to 5 PM CST, in English or Spanish.

    (956) 386-1464

    sales@lagindustrial.com
