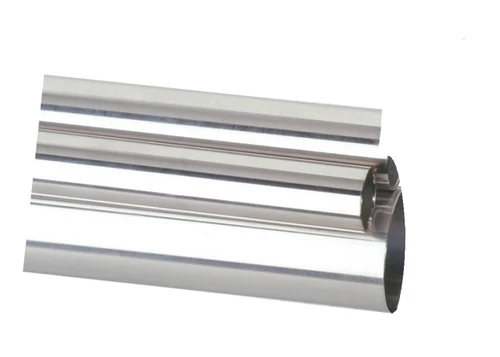

Steel & O'Brien sanitary tubing
Polished ASTM A270 tubing and hangers, ½" to 12"
Domestic tubing with a 20 Ra ID or import tubing with a 32 Ra ID, both 32 Ra OD, in 304 or 316L. Tell us the size and footage and we'll quote it in full 20 ft sticks and boxes.
These are the most common tubing and hangers, not our full line. Our manufacturers make many more sizes, materials, and configurations. Don't see what you need? Call (956) 386-1464, email sales@lagindustrial.com, or download the full catalogs.
Tubing builder
Size, grade, and footage
Tubing is sold in 20 ft lengths and full boxes. We round your footage to whole sticks and show you how many boxes that is.
Before you order tubing
- Tubing is available in 20 ft lengths only
- Surcharges change monthly
- Broken box charges will apply
- Tubing ships by truck only
- Tubing is NOT returnable
| Part # | OD | Wall | OD tol. | Wall tol. | Box | ASTM |
|---|
Ovality cannot exceed the OD range.
Tube hangers
Hex hangers that let the line float
304 stainless hex hangers with a plastic sleeve, so the tube can move as it heats and cools without scratching or distorting.
How to support a sanitary line
- Support straight runs at least every 10 ft
- Support both sides of every valve, as close to the connection as you can
- Support every change of direction
- Never anchor the line rigidly to equipment. It has to float as temperature changes
Your quote list
Tubing, fittings, and valves together
This list is shared with the valve, fitting, and filter pages, so you can quote the whole line at once.
| Part # | Description | Qty |
|---|
Your list is empty. Choose tubing above and press "Add to quote list".
Need fabricated spools or a full tubing run?
Send us your drawing or layout. We'll quote the tubing, fittings, hangers, and any custom fabrication together.
